DMS 10 Rib 100mm idler and relo bracket with 1/2 bolt mod
This is the standard DMS +5MM relo bracket that's been modified to accept a 1/2-20 Grade 8 bolt. By upgrading the diameter of this bolt we can prevent deflection caused by the larger 2650 superchargers, upgraded tensioners or increasing your belt with more than 8 ribs. When this pulley deflects it will cause belt failure.
Eliminate belt slippage and optimize belt wrap with the DMS +5mm Relocation Bracket and 100mm Idler Pulley Combo. This kit is specifically designed for high-performance supercharger setups, particularly those utilizing aggressive or extra-small upper pulleys.
Key Features and Benefits:
- Increased Belt Wrap: +5mm relocation bracket moves the belt closer to the upper pulley, significantly increasing belt wrap and preventing slippage.
- Optimized Performance: Ensures consistent boost levels and power delivery, even under demanding conditions.
- High-Quality Construction: Both the bracket and pulley are CNC machined from 6061 billet aluminum for exceptional strength and durability.
- Durable Finish: Black anodized finish provides corrosion resistance and a sleek appearance.
- High-Speed Bearings: The 100mm idler pulley is equipped with Italian-made high-speed bearings and a Spirolox retainer ring for optimal performance and balance at high RPMs.
- Easy Installation: Designed to reuse OEM bolts for a straightforward installation process.

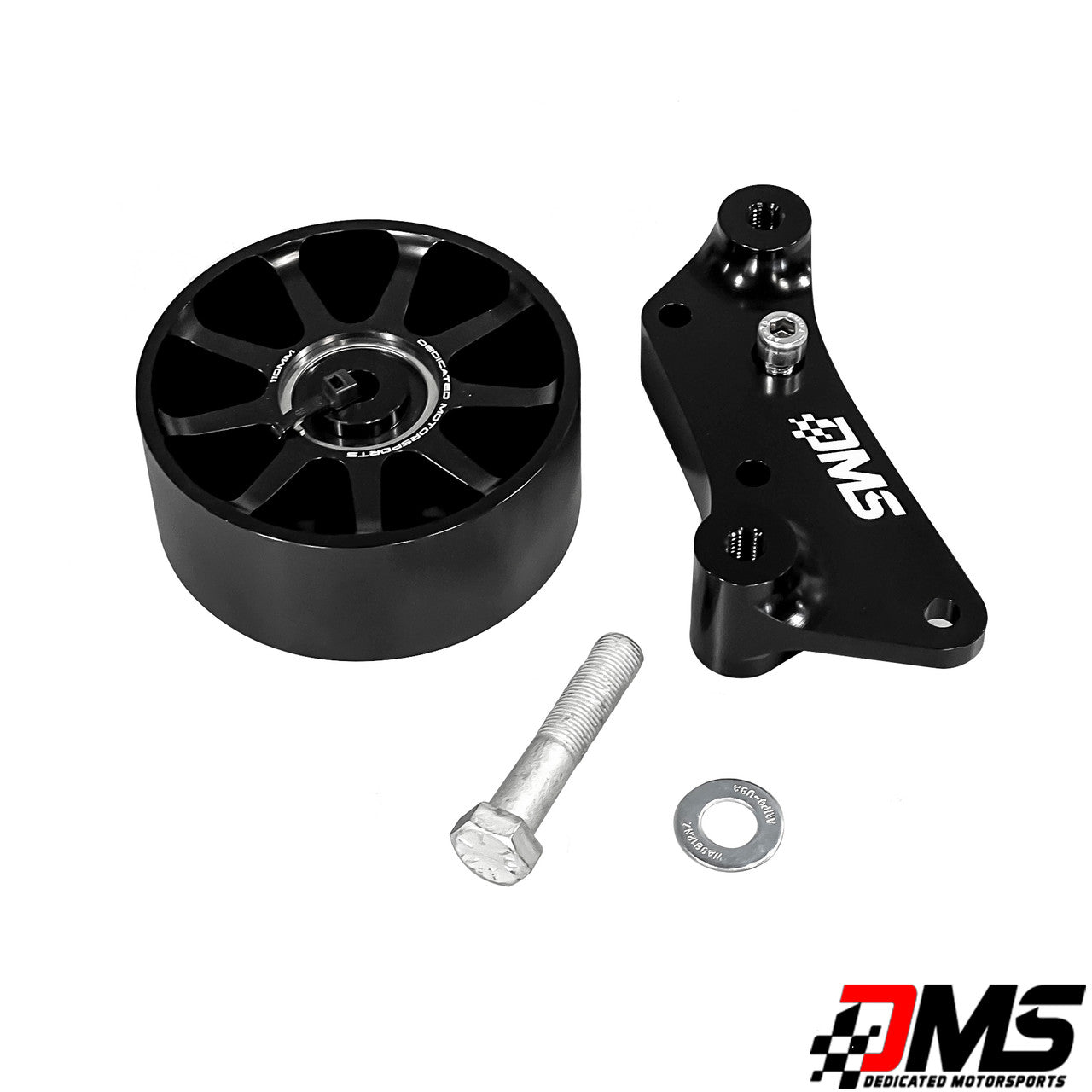

Kit Includes:
- DMS +5mm Relocation Bracket
- DMS 100mm Idler Pulley
- DMS 1/2" Bolt/Washer
Fitment:
- LSA Supercharger Systems (and other compatible systems)
Installation:
Direct replacement installation using OEM bolts. Idler Pulley Install Guide
Important Note:
- A belt fitment guide is currently in development. We recommend starting with a belt one size larger than your current belt.
